FEATURES

Cyclonic V-twin engine is smooth running and powerful

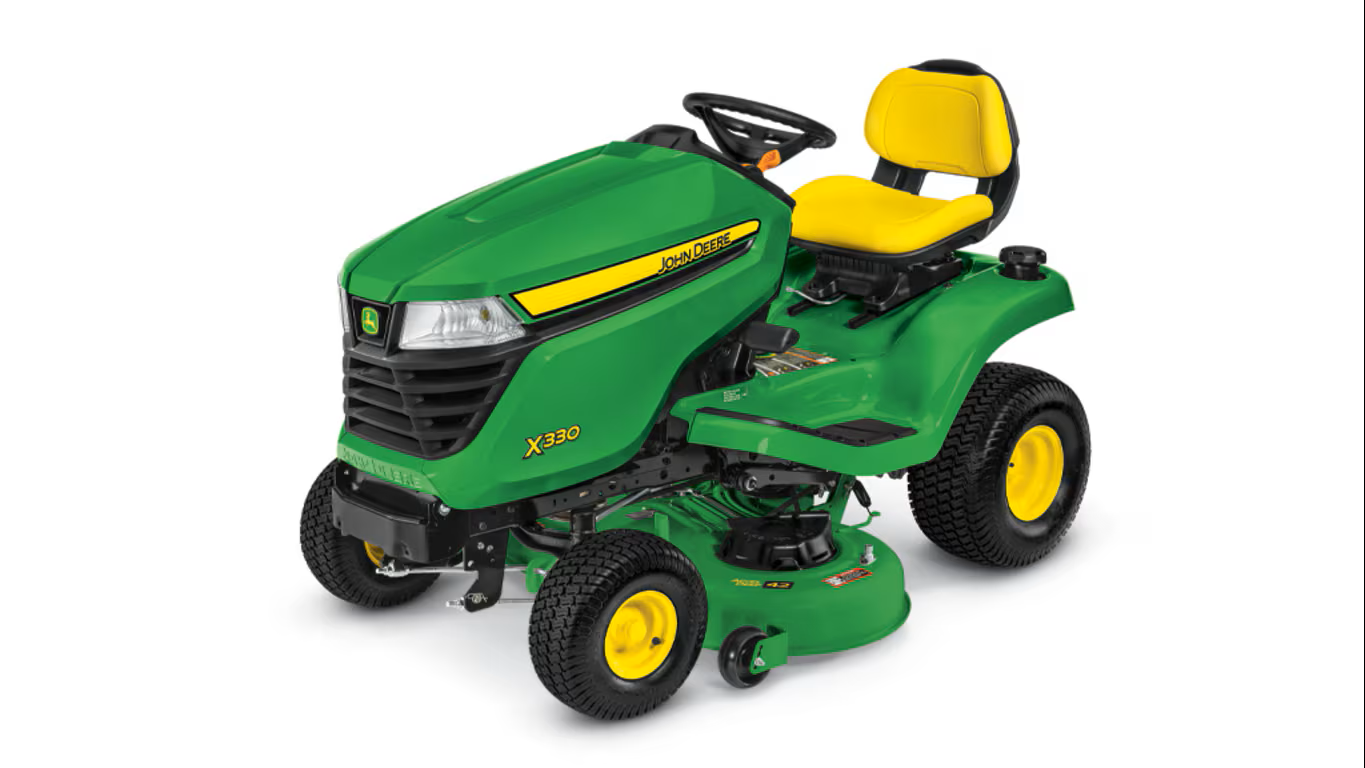

The 22-hp (16.4-kW) V-twin engine used in the Select Series™ X330 Tractor provides plenty of power and torque to handle tough mulching, mowing, and bagging conditions:

• V-twin cylinder design for greater torque, lower vibration, and improved sound quality
• Large, 44.2-cu in. (724-cc) displacement
  • Plenty of torque helps to get the job done fast.
  • Large displacement engine increases the ability to get an even cut without mowing a second time.
  • Camshaft and carburetor designs create the optimum torque rise for rapid response to varying load conditions.
• Electronic ignition for fast starts
• Cast-iron sleeves for longer engine life
• Overhead valves for excellent power and fuel economy
• Full-pressure lubrication and oil filter for keeping the oil cleaner for a long engine life and extending the time between oil changes; full-pressure lubrication is also more effective when operating the tractor on an incline
• Excellent serviceability with easily replaced air filter, fuel filter, and oil filter and a convenient oil-drain hose to make draining the oil easy and clean

Cyclonic air filter

Cyclonic air-management system removes larger particles of dirt before they reach the air filter for reduced filter maintenance and longer engine life:

• Cyclonic design ejects large dirt particles before they contact the filter.
• Large, high-quality dry-type paper element air filter thoroughly cleans engine intake air.
• The cover over the air filter is easily removed with two knobs for cleaning or replacement of the filter.

Serviceability

Engine oil check and fill tube is conveniently located for easy access. Oil drain hose makes draining oil easy and clean.

Replaceable oil filter and fuel filter are easy to access and change to minimize service time and cost.

Two debris inspection ports help ensure clean engine fins for optimum cooling. Bolts to open them are conveniently located under the air filter cover.

Flywheel alternator

A flywheel alternator provides plenty of capacity to quickly recharge the battery and power electrical equipment, such as lights or a sprayer:

• 14-amp charging capacity
• Regulated to keep the battery at full charge without risk of overcharging

42-in. (107-cm) Accel Deep™ (42A) Mower Deck cuts clean and is versatile

The 42-in. (107-cm) Accel Deep Mower Deck is a stamped-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

• 4.97-in. (12.6-cm) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance
  • Optional lever-action or electric one-touch MulchControl™ system for superior mulching performance and versatility
• Stamped-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
• Mower deck suspended from the vehicle for a smooth and level cut
  • Adjustable mower wheels, positioned just above ground level, help reduce scalping
• 0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height
• Compatible with efficient 7-bu (247-L) two-bag cut-and-throw material collection system
• For use on X330, X350, X354, and X370 Tractors

Excellent cut quality

Deep mower-deck stamping gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:

• Reducing the amount of recutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
  • Helps maintain excellent cut quality at faster mowing speeds
• Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
• Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.
• Exact Adjust deck-leveling system allows for easy and accurate leveling of the mower deck

Productivity – gets the job done fast

Deep mower-deck stamping gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:

• Greatly improves mowers capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds

Large discharge opening is both high and wide to handle more material:

• Gives a smooth, even discharge of clippings at all mowing speeds
• Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging
• Cut-and-throw chute has a large, optimized inlet which aids in collecting material by using airflow from the large deck opening

Cleanliness – for the mower and the operator

The flat-top shape of the deck stamping is optimal for keeping itself and the operator clean:

• There are few places to catch and hold material on top and underneath the deck.
  • Top of deck stays cleaner, reducing time and effort needed for cleaning and service
  • Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
  • Less need to clean and remove buildup of material from underside deck
• The depth of the Accel Deep mower deck minimizes the amount of material that escapes from the front of the deck
  • Limited amount of material to drift onto the operator and mower deck
  • Even flow of material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
  • Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.

Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:

• The flat-top design reduces places for material to build up and makes material that does collect easy to remove.

Mower blades

High-lift bagging blades are included with the bagger chute. They provide optimum performance when bagging in difficult conditions, such as when the grass is moist, dense, or long:

• High-lift bagging blades also work well when side discharging material.

Mulching blades are included with the optional MulchControl system. They can be used for mulching, side discharging, and bagging in most conditions.

Mower blade use chart
